10" SS 317L ANSI B16.9 Concentric Pipe Reducer

Name: 10quot SS 317L ANSI B169 Concentric Pipe Reducer
Brand: zheheng steel
Price: 1.5 USD

China 10" SS 317L ANSI B16.9 Concentric Pipe Reducer wholesale

Brand Name : zheheng steel

Model Number : 1/2"inch-10"inch

Certification : PED .TUV. ISO

Place of Origin : china

MOQ : 10

Price : 1.5 USD/PCS--5280/PCS

Payment Terms : L/C, T/T

Supply Ability : ACCORDING TO CUSTOMER'S REQUEST

Delivery Time : 15-30days

Packaging Details : Standard export seaworthy package or as required.

outside diameter : 1/2"-10"

thickness : sch10s ,sch40s

other name : stainless steel pipe fittings

steel grade : 317 / 317L

connection : butt welding

name : reducer

shape : concentric

technology : seamless and welded

standard : ASTM A403 ASME B16.9

material : stainless steel

Contact Now

ASTM A403 317 / 317L Stainless Steel Pipe Fittings Con Concentric Reducers

"zheheng steel" is a professional stainless steel products supplier, specializes in producing duplex stainless steel and stainless steel pipe fitting ( elbow, tee, reducer, stub end, cap), flange, forged fitting, sanitary fitting etc.

Welsure products are according to ANSI/ASME B16.9, ANSI/ASME B16.5/B16.47, ANSI/ASME B16.11, BS, DIN,JIS etc.

We will offer quality products at best price with good services to our customers around the world. We are looking forward to cooperating with you.

Products range:

Product	317/317 stainless steel pipe fittings con concentric reducers
Size	1/2" to 48"
Material	Duplex Steel:S31500.S31803(2205).S32304.S32205.S32760.S32750
	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L
	Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91
	Low Temperature: ASTM A420 WPL 1, WPL 3, WPL 6
Wall Thickness	SCH5S - SCH160
Standard	ASME. JIS . DIN. EN. ISO .GB .HG
Type	Concentric,Eccentric
Surface treatment	Sand Rolling, Sand Blasting ,Acid Cleaning.
Applications	Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Dimensions of Reducers

Nominal Pipe Size(NPS)	large end	small end	End-to-End, H	Nominal Pipe Size(NPS)	large end	small end	End-to-End, H
3/4"X1/2"	26.7	213	38	5X4	141.3	114.3	127
3/4"X3/8"	26.7	17.3	38	5 x 3-1/2"	141.3	101.6	127
1"X3/4"	33.4	26.7	51	5 x 3	141.3	88.9	127
1"X1/2"	33.4	21.3	51	5 x 2-1/2"	141.3	73	127
1-1/4"X 1"	42.2	33.4	51	5 x 2	141.3	60.3	127
1-1/4"X 3/4"	42.2	26.7	51	6X5	168.3	141.3	140
1-1/4"X 1/2"	42.2	21.3	51	6x4	168.3	114.3	140
1-1/2"X 1-1/4"	48.3	42.2	64	6 x	168.3	101.6	140
1-1/2"X 1"	48.3	33.4	64	6X3	168.3	88.9	140
1-1/2"X 3/4"	48.3	26.7	64	6 x 2-1/2"	168.3	73	140
1-1/2"X 1/2"	48.3	21.3	64	8x6	219.1	168.3	152
2"X 1-1/2"	60.3	48.3	76	8X5	219.1	141.3	152
2"X 1-1/4"	60.3	42.2	76	8X4	219.1	114.3	152
2"X 1"	60.3	33.4	76	8 x 3-1/2"	219.1	101.6	152
2"X 3/4"	60.3	26.7	76	10 x 8 .	273	219.1	178
2-1/2"X 2"	73	60.3	89	10 x 6	273	168.3	178
2-1/2"X 1-1/2"	73	48.3	89	10 x 5	273	141.3	178
2-1/2"X 1-1/4"	73	42.2	89	10 x 4	273	114.3	178
2-1/2"X 1"	73	33.4	89	12 x 10	323.8	273	203
3"X 2-1/2"	88.9	73	89	12 x 8	323.8	219.1	203
3"X 2"	88.9	60.3	89	12 x 6	323.8	168.3	203
3"X 1-1/2"	88.9	48.3	89	12 x 5	323.8	141.3	203
3"X 1-1/2"	88.9	42.2	89	14 X 12	355.6	323.8	330
3-1/2"X 3"	101.6	88.9 .	102	14 X 10	355.6	273	330
3-1/2"X 2-1/2"	101.6	73	102	14 X 8	355.6	219.1	330
3-1/2"X 2"	101.6	60.3	102	14 X 6	355.6	168.3	330
3-1/2"X 1-1/2"	101.6	48.3	102	16 x 14	406.4	355.6	356
3-1/2"X 1-1/4"	101.6	42.2	102	16 x 12	406.4	323.8	356
4"X 3-1/2"	114.3	101.6	102	16 x 10	406.4	273	356
4"X 3"	1143	88.9	102	16 x 8	406.4	219.1	356
4"X 2-1/2"	114.3	73	102	18 x 16	457	406.4	381
4"X 2"	114.3	60.3	102	18 x 14'	457	355.6	381
4"X 1-1/2"	114.3	48.3	102	18 x 12	457	323.8	381

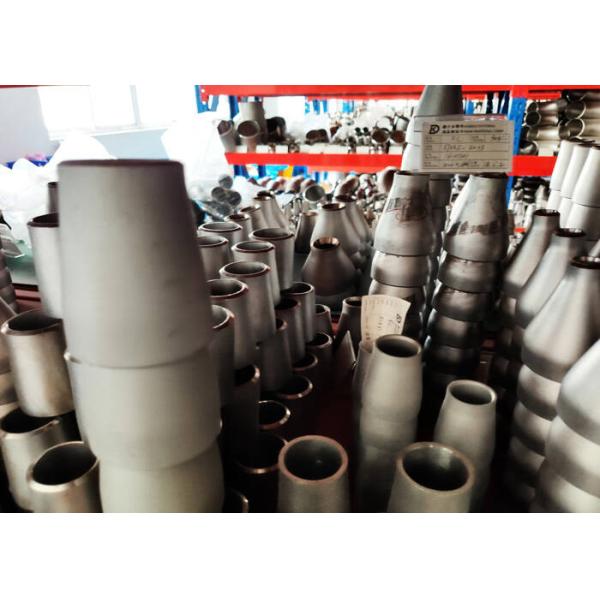

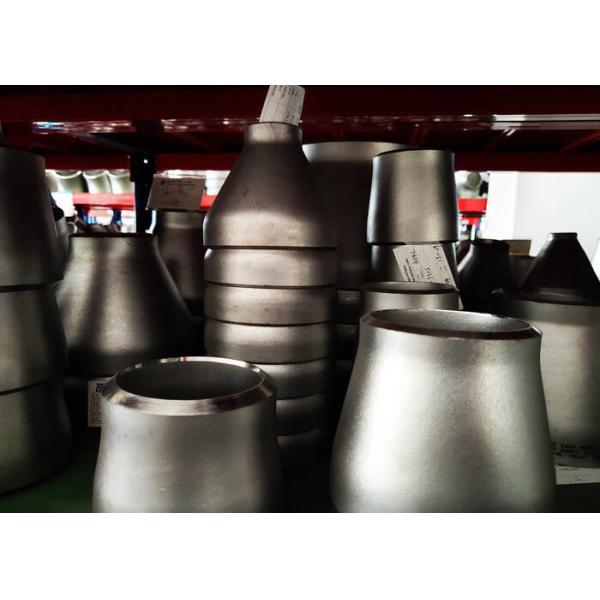

products show:

10" SS 317L ANSI B16.9 Concentric Pipe Reducer
